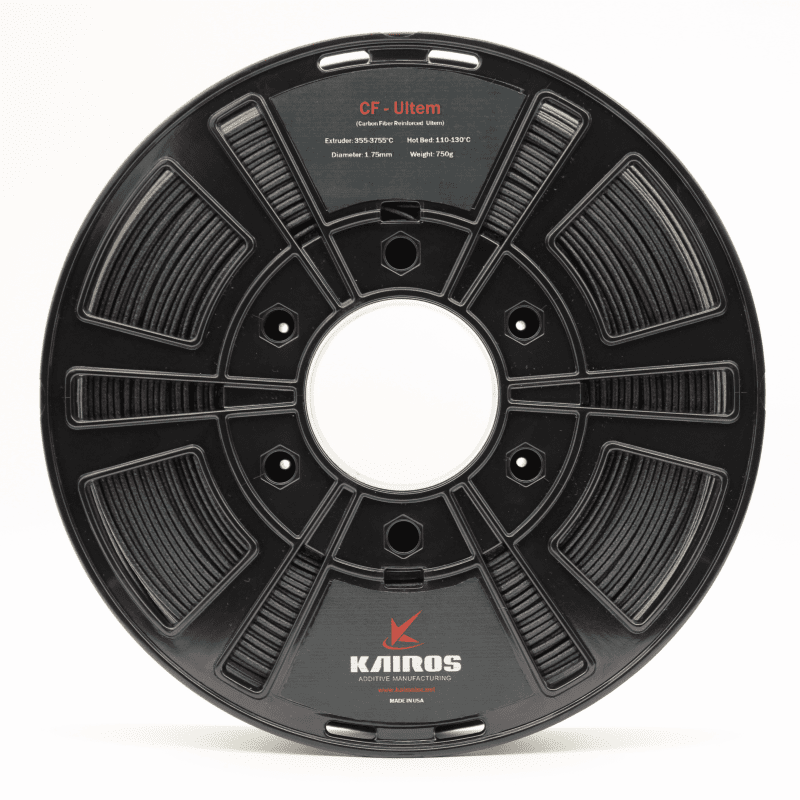

Carbon Fiber Ultem Filament

Carbon Fiber Ultem Filament

$195.99

KAIROS, Inc. Carbon Fiber Polyetheimde (Ultem™) filament is crafted using a Sabic 9085 aerospace grade resin blended with Toray T800 chopped carbon fibers at ~10% by volume. Ultem™ 9085 is Federal Aviation Administration (FAA) approved for Flame/Smoke/Toxicity applications, making it safe to use on aircraft. This filament provides superior strength and stiffness specially designed for the aerospace and defense industry. This filament is compatible with KAIROS, Inc. Click-to-Print™ software available on all of our 3D printer systems.

Diameter – 1.75mm/ Weight – 500g/ Color – Black

BUY 3 GET 5% OFF!

SKU: KRS-AM-1401 Category: Tags: , , , ,

Technical Datasheet

Download Carbon Fiber Ultem Datasheet

Have additional Questions?

Ask A KAIROS Expert

Extruder Temperature

Carbon Fiber Ultem Extruder Temperature is recommend between 355°C-375°C

Hot Bed Temperature

Carbon Fiber Ultem Hot Bed Temperature is recommend between 120°C-140°C

Enclosed Chamber

A 3D printer with an enclosed chamber is recommended for this filament

Nozzle Size

Using an extruder with a 0.5 mm or greater nozzle size is recommend for this filament

Layer Height

Using a layer height of 0.25 mm or greater nozzle size is recommend for this filament

Drying Time

Carbon Fiber Ultem filament should be dried at 120°C for at least 4 hours

Weight 2 lbs
Dimensions 9 × 9 × 3 in
